मूल्य और मात्रा

• न्यूनतम आदेश मात्रा 01

उत्पाद की विशेषताएं

• फ़िलिंग सामग्री Powder (spices, pharma, chemical, flour, etc.)
• मुख्य घटक Servo Motor, PLC, Touch Screen, Hopper, Auger
• ग्रेड Automatic, GMP Model
• पैकेजिंग का प्रकार Bottles, Containers, Jars, Cans
• चालित प्रकार Electric
• क्षमता 20-35 Bottles/Min (Depending on fill volume)
• आयाम (एल* डब्ल्यू* एच) 900 mm x 800 mm x 1800 mm
• मोटर पावर 1 HP
• फिलिंग रेंज 10 gm to 1000 gm (Customizable on request)
• वायु का उपभोग Approx. 6 cfm at 6 bar
• उपयोग/अनुप्रयोग Powder filling for food, pharmaceutical, chemical, and cosmetic industries
• वोल्टेज 230V AC Single Phase

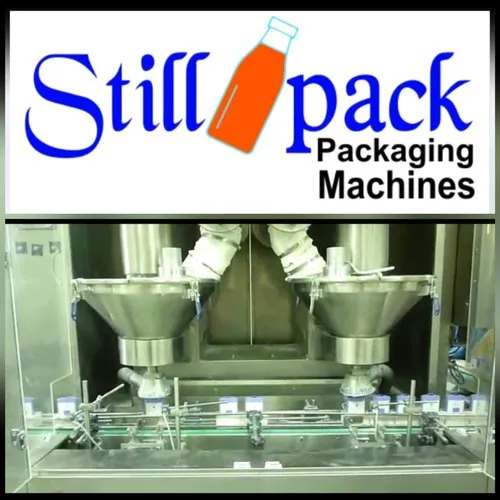

• प्रॉडक्ट टाइप Automatic Single Head Powder Filling Machine
• वज़न Approx. 250 Kg

• Container Height Range 50 mm to 300 mm
• Filling Accuracy 1% depending on powder and fill volume
• Nozzle Type Single Head with Anti-drip mechanism
• Noise Level < 75 dB
• Operation Mode Fully Automatic
• Control Panel PLC based with HMI Touch Screen
• Change Parts Requirement Depends on container & fill volume
• Suitable Container Type Glass, PET, Plastic, Metal containers
• Hopper Capacity 35 Liters
• Cleaning System Tool-less dismantle of contact parts
• Conveyor Belt Length 1524 mm (customizable)
• Machine Material Stainless Steel (SS304 contact parts, SS structure)
• Safety Features Interlock guards, Overload protection
